Large FOV Machine Vision Telecentric Lens F4.6 Mag. 0.250x 0.41kg

Brand Name : OPT

Model Number : OPT-TS0250-110

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Model : OPT-TS0250-110

WD : 110±2mm

Mag. (x) : 0.250

Aperture (F#) : F4.6

DOF (mm) : 6.07mm

MTF30 (lp/mm) : 190lp/mm

Weight (kg) : 0.41kg

Feature : Bi-telecentric design

Contact Now

TS Series Large FOV Bi-telecentric Lenses F4.6 Mag. 0.250x MTF30 190lp/mm 0.41kg OPT-TS0250-110

Product Features

◆ The F/# aperture is 4.6.

◆ The OPT-TS0250-110 working distance(mm) is 110±2mm.

◆ OPT-TS0250-110 long WD machine vision telecentric lenses magnification is 0.250x.

◆ Image circle Ø (mm) of OPT-TS0250-110 is 9mm.

◆ The weight(kg) of OPT-TS0250-110 long WD machine vision telecentric lens is 0.41kg.

◆ Maximum distortion(%) of OPT-TS0250-110 is 0.1%.

◆ OPT-TS0250-110 is up to 240mm FOV and compatible with 4/3"- 59mm F/M-Mount cameras or 1/2.5" - 1" C-Mount cameras,with high resolution, designed to be bi-telecentric, large aperture, high telecentricity, low distortion, and large depth of field (DOF) 42 standard models and 100+ custom designs

◆ The DOF(mm) of OPT-TS0250-110: 6.07mm.

◆ MTF30(lp/mm) of OPT-TS0250-110 is 190lp/mm.

◆ FOV (mm×mm) of 1/2.5″ | 5.8×4.3: 23.2×17.2; FOV (mm×mm) of 1/1.8″ | 7.2×5.3: 28.8×21.6

Model Explanation

OPT-TS0250-110

OPT: Brand name

TS: TS series large FOV bi-telecentric lenses

0250: Magnification: 0.250x

110: Working distance: 110mm

Specifications

Product Name	TS Series Large FOV Bi-telecentric Lenses
Model	OPT-TS0250-110
F/# aperture	4.6
Working distance	110±2mm
Mag. (x)	0.250x
Image circle Ø (mm)	9
Maximum distortion(%)	0.1%
Weight(kg)	0.41kg
DOF (mm)	6.07mm
MTF30(lp/mm)	190lp/mm
FOV (mm×mm) of 1/3″ \| 4.8×3.6	23.2×17.2
FOV (mm×mm) of 1/1.8″ \| 7.2×5.3	28.8×21.6

Application Examples:

Large FOV Machine Vision Telecentric Lens F4.6 Mag. 0.250x 0.41kg

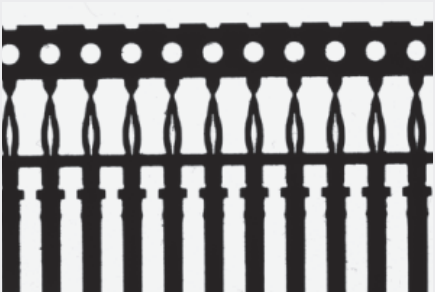

Gauging for Connectors

Dimensions (mm)

OPT-TS0250-110

Large FOV Machine Vision Telecentric Lens F4.6 Mag. 0.250x 0.41kg
